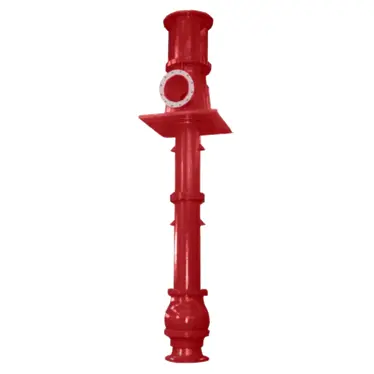

Vertical Turbine Pump

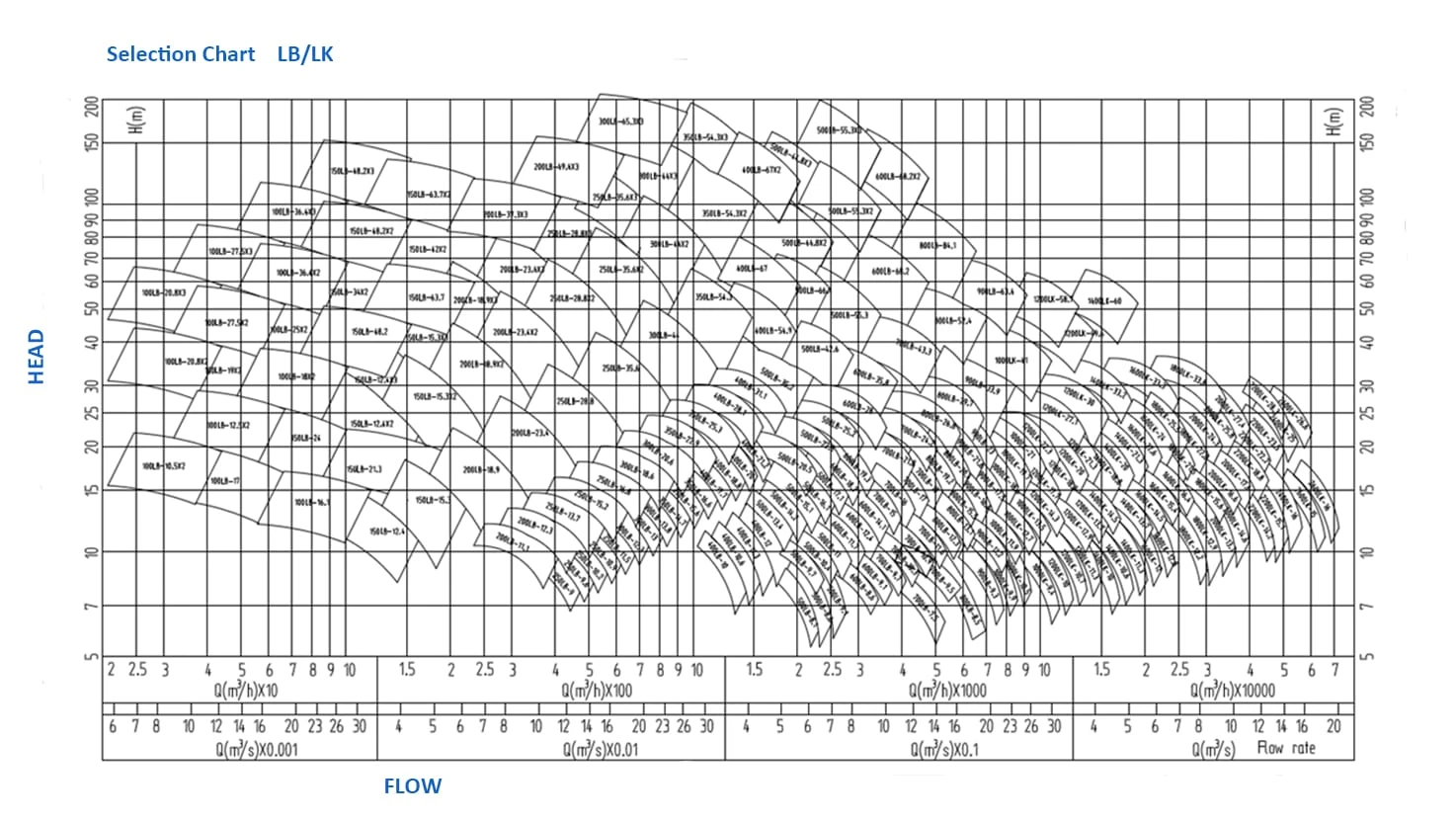

Flow Capacity: Ranging from 30 to an impressive 70,000 cubic meters per hour. Head: Covering a broad spectrum from 5 to 220 meters.
Applications are diverse and encompass numerous industries and sectors

Vertical turbine pumps feature a distinctive design where the motor is positioned above the installation base. These pumps are highly specialized centrifugal devices meticulously engineered for the efficient transfer of various fluids, including clear water, rainwater, liquids found in iron sheet pits, sewage, and even seawater, as long as the temperature does not exceed 55°C. Moreover, we can provide customized designs for handling media with temperatures of up to 150°C.

Product Details

Applications are diverse and encompass numerous industries and sectors:

Petrochemical Industry / Chemical Industry / Power Generation / Steel and Iron Industry / Sewage Treatment / Mining Operations / Water Treatment and Distribution / Municipal Usage / Scale Pit Operations.

These versatile vertical turbine pumps serve a wide array of applications, contributing to the efficient and reliable movement of fluids across multiple sectors.

Characteristics

● Single stage/Multi stage vertical centrifugal pumps with diffuser bowl

● Enclosed impeller or Semi open impeller

● Clockwise rotation viewed from coupling end(from top),counter clockwise available

● Space saving with vertical installation

● Engineered to customer specification

● Above or below ground discharge

● Dry pit/Wet pit arrangement available

Material

Bearing:

● Rubber as standard

● Thordon、graphite、bronze and ceramic available

Discharge Elbow:

● Carbon steel with Q235-A

● Stainless steel available as different media

Bowl:

● Cast iron Bowl

● Cast steel,304stainless steel impeller available

Sealing ring:

● Cast iron,cast steel,stainless

Shaft & Shaft Sleeve

● 304 SS/316 or duplex stainless steel

Column:

● Cast steel Q235B

● Stainless as optional
